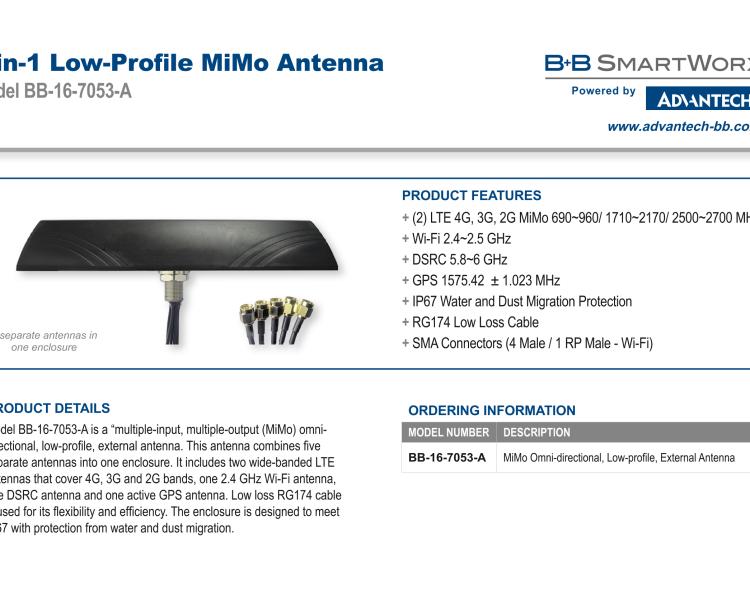

研華BB-16-7053-A MIMO Antenna, Low Profile, Omni Directional

• (2) LTE 4G, 3G, 2G MiMo 690~960/ 1710~2170/ 2500~2700 MHz
• Wi-Fi 2.4~2.5 GHz
• DSRC 5.8~6 GHz
• GPS 1575.42 ± 1.023 MHz
• SMA Connectors (4 Male / 1 RP Male - Wi-Fi)
• RG174 Low Loss Cable
• IP67 Water and Dust Migration Protection

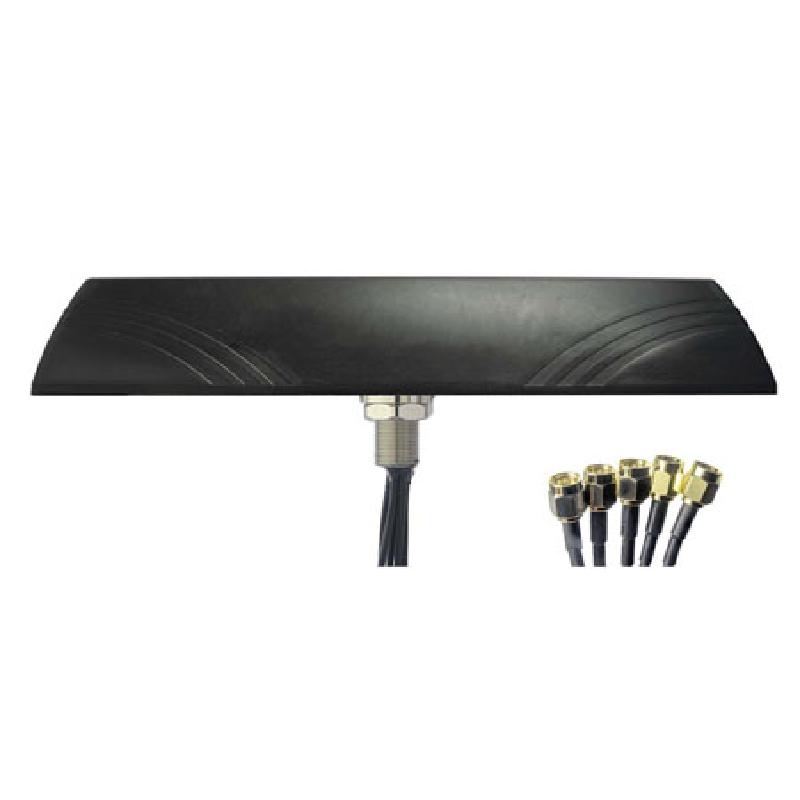

• Model BB-16-7053-A is a "multiple-input, multiple-output (MiMo) omni-directional, low-profile, external antenna. This antenna combines five separate antennas into one enclosure. It includes two wide-banded LTE antennas that cover 4G, 3G and 2G bands, one 2.4 GHz Wi-Fi antenna, one DSRC antenna and one active GPS antenna. Low loss RG174 cable is used for its flexibility and efficiency. The enclosure is designed to meet IP67 with protection from water and dust migration.
