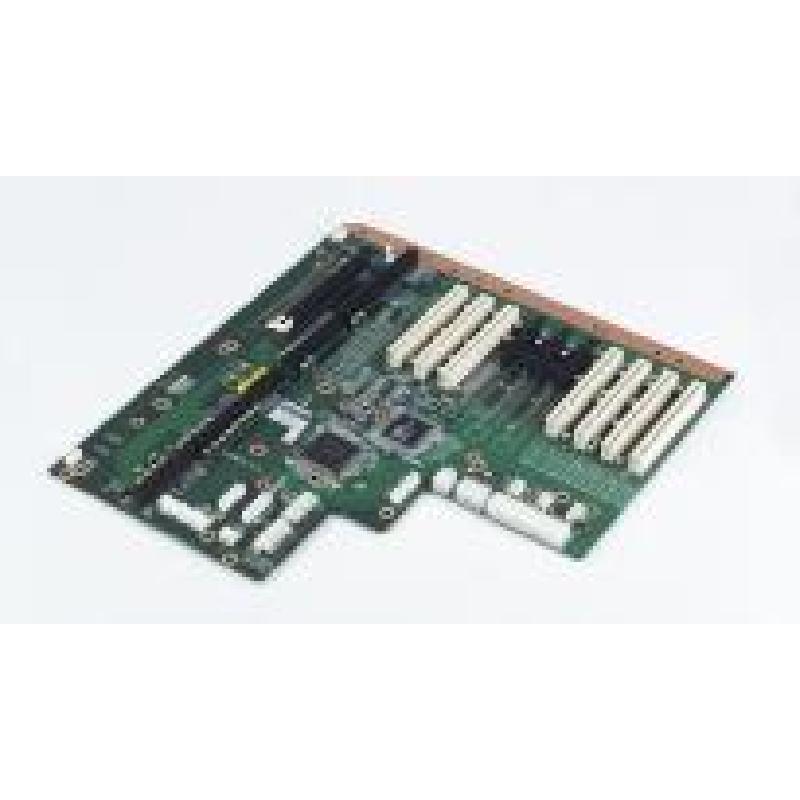

研華PCE-5B12 12-slot BP for 14-slot Chassis

• 12-slot BP for 14-slot Chassis
• Segments: 1
• One CPU card slot
• PCIe slot: One x16
• PCI slot: Ten 32/33
• Compatible with IPC chassis: IPC-510, IPC-610, IPC-611, ACP-4000, ACP-4010, ACP-4320, and ACP-4360
• Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech's SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.
