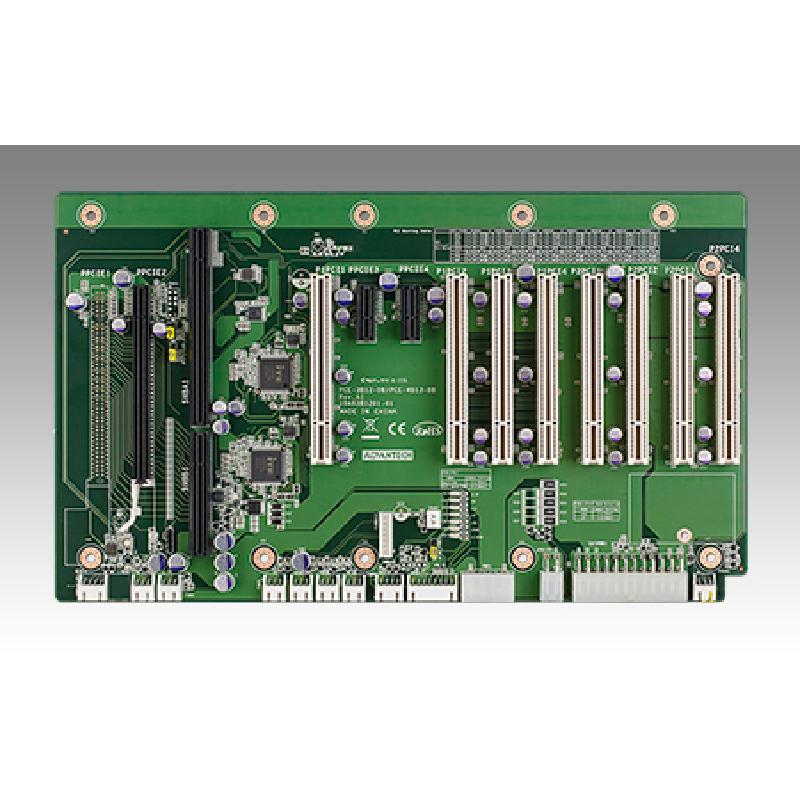

研華PCE-3B12 PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000 series and IPC chassis: ACP-4020

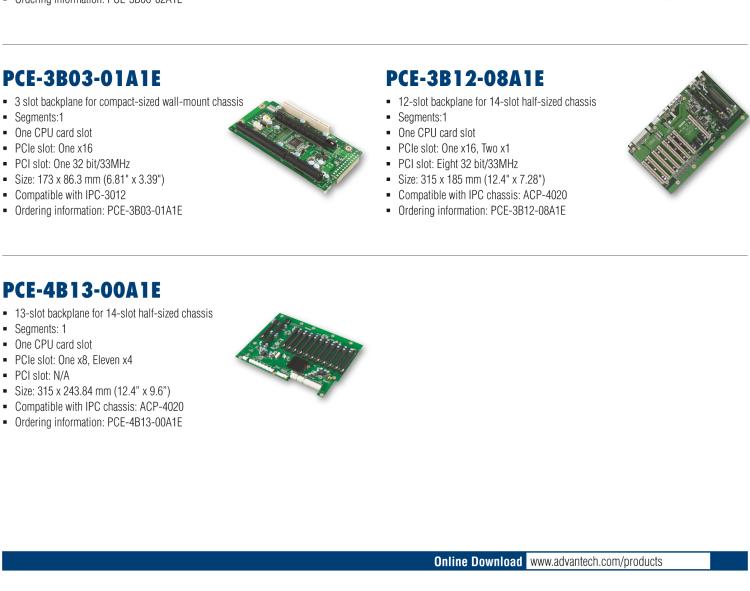

• 12-slot backplane for 14-slot half-sized chassis
• Segments:1
• One CPU card slot
• PCIe slot: One x16, Two x1
• PCI slot: Eight 32 bit/33MHz
• Size: 315 x 185 mm (12.4" x 7.28")
• Compactible with IPC chassis: ACP-4020
• Ordering information: PCE-3B12-08A1E
• PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000 series and IPC chassis: ACP-4020
