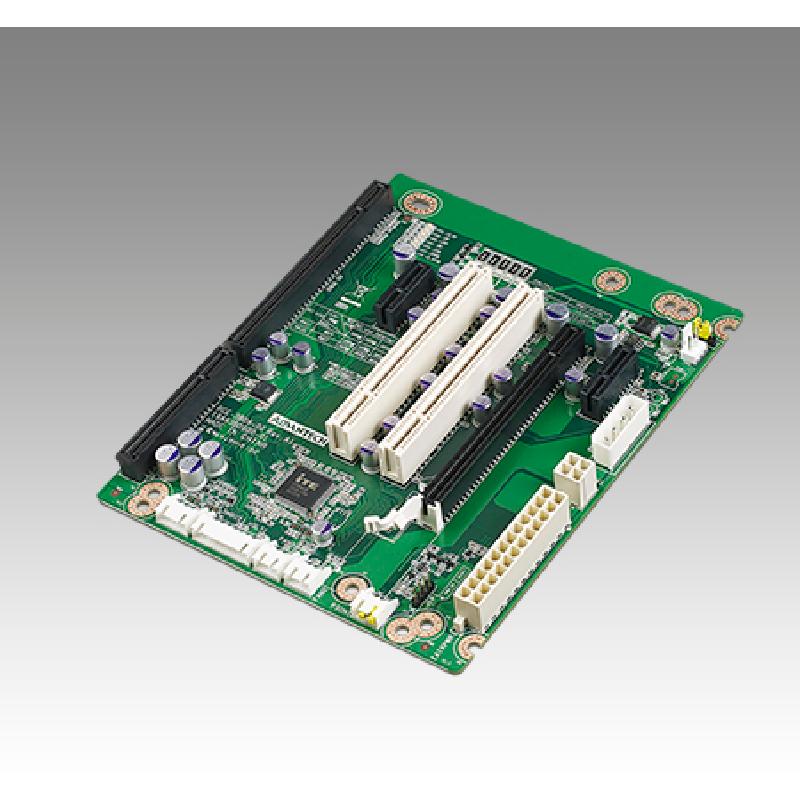

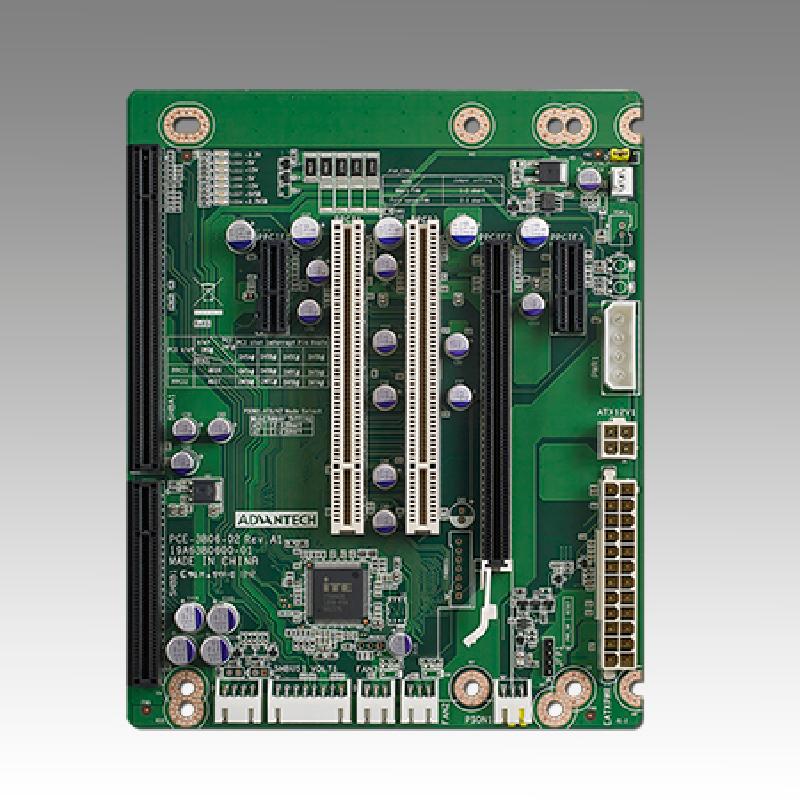

研華PCE-3B06 PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000/PCE-4000 series and IPC chassis: IPC-3026, IPC-6806S

• 6 slot backplane for 6-slot chassis
• Segments:1
• One CPU card slot
• PCIe slot: One x16, Two x1
• PCI slot: Two 32/33
• Size: 142 x 176 mm
• Compatible with ACP-4D00, IPC-6806S, IPC-3026
• Ordering information: PCE-3B06-02A1E
• PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000/PCE-4000 series and IPC chassis: IPC-3026, IPC-6806S
